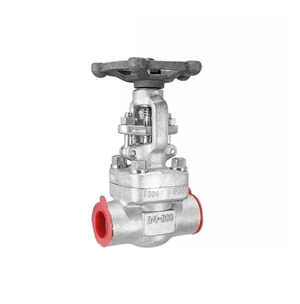

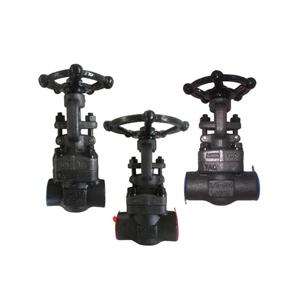

Forged Pressure Seal Gate Valve

The opening and closing parts of forged steel gate valves are gate plates. The movement direction of the gate is perpendicular to the direction of the fluid, and the forging gate valve can only be fully opened and closed, and can not be adjusted and throttled. The gate of the forging gate valve has two sealing surfaces. The two sealing surfaces of the most commonly used gate valves are wedge-shaped and wedge angles vary with valve parameters.

Standard specification.

Design and manufacture:API 602,BS 5352,ANSI B16.34.
Connection ends conform to:
    -Socket welded ends:ANSI B16.11.
    -(NPT threaded)Screw ends:ANSI B1.20.1.
    -Butt-welded ends:ANSI B 16.25.
    -Flanged ends:ANSI B 16.5.
Inspection & testing:API 598.
Tag: MSS SP 25.

Special Design:

    -Bellow Seal forged gate valve.
    -Cryogenic forged gate valve.
    -Extended body forged gate valve.
    -Venting forged gate valve.
    -Twins forged gate valve.

Construction features.

Non-Rising Handwheel,
Outside Screw And Yoke,Rising Stem.
Integral Backseat.
Solid Wedge,Renewable Seat Rings,Sprial Wound Gasket.
Spring Loaded To Ensure That Even In The Low-Pressure Sealing Performance As Well.
Low Leakage Test Stem Packing By.
Automatically Adjust The Preload Gland Packing.

Application.

 For valves which size is smaller than 2"(DN50), forged steel valves are recommended. Compared with castings,forged valve offer the advantages of more uniform structure, greater density, higher strength integrity, enhanced dimensional characteristics and closer dimensional tolerances.Owing to so many advantageds,the forged valve can be widely used in the fields of petroleum,natural gas,chemical,power and other industries.
