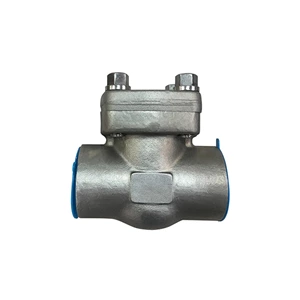

Forged Piston Check Valve

PN:

16~250

DN:

15~1400

Material:

WCB, A105, LCC, LF2, 20ГЛ, 20ГМЛ, SS304, SS321, SS316, SS316Ti

DRIVE:

Manual, Electric, Pneumatic

Connection:

Flange, Welded, Threaded

Medium:

Water, steam, oil, chemical

The GAIRUI Forged Piston Check Valves is a valve which is automatically opened and closed by the flow of the medium itself, and is used to prevent the reverse flow of the medium. It is also called a reverse check valve, a one-way valve, a countercurrent valve, and a back pressure valve. The check valve is an automatic valve. Its main function is to prevent the backflow of the medium, prevent the reversing of the pump and drive motor, and the discharge of the container medium. The check valve can also be used to supply pipelines where the pressure may exceed the system pressure. Check valves can be divided into swing check valves (with center of gravity rotation) and lift check valves (along the axis).

Forged carbon steel A105
Class 800

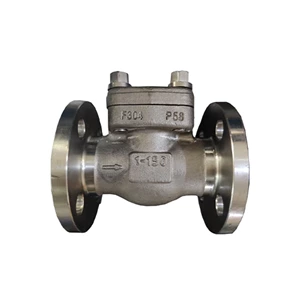

Threaded ends/Flanged Ends carbon Steel
Bolted bonnet
NACE MR-0175
Applicable Standards
Basic Design API 602
Test API 598

Product Details
Type	THREADED & SOCKET WELD
Size	1/4" -2"
Body Material	A105, LF2, F5, F11, F22, F304, F316, F304L,etc. and Monel, Alloy20
Pressure	Class 800,1500
End connection	Threaded, Socket Weld, Threaded X Socket Weld
Ports	Standard & Full Port
BONNET DESIGN	Bolted Bonnet & Welded Bonnet
Trim	Trim 5, 8, 12, 16, and Special Materials
Features	MTC,OS&Y, Rising Stem, Solid Wedge, Graphite Packing and Gasket, (Low Fugitive Emission)
