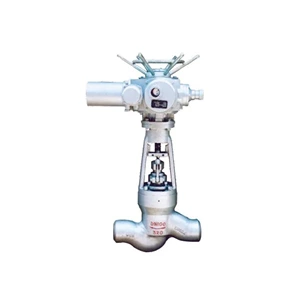

Cryogenic Globe Valve
GAIRUI Cryogenic Globe Valves are designed and manufactured strictly to International Standards BS 1873, ASME B16.34 or DIN3202, During the processes of production, transportation, storage and usage of liquefied gases, countless technical problems can be experienced. Med cryogenic Globe valves are designed to assure safety and reliability under these critical conditions. All of Med cryogenic Globe valves are thoroughly cleaned and decreased. Afterwards the end ports are sealed to prevent contamination. This process is performed in an approved and designated clean room.
Featured with compact structure & Low emission service.
Product Description
Cryogenic gas control valve extended stem globe valve with wheel handle
Body materials: A105/F304/F316/F5/F9/F11/F22/F531/F91/F92/F304L/F316L
Wedge disc material: WCB,CF3/CF3M,CF8/CF8M
Stem material: F304/304L,F316/316L,ICr13
Packing: PTFE,Graphite
Packing gland: WCB,CF3/CF3M,CF8/CF8M
Handwheel material: ductile cast iron
Medium: NITRLC ACID,ACETIC ACID,
Connection: flange
Operation: manual,pneumatic,electric
Warm Reminder: more complete drawing and technical specsifactions please contact us to get.
Specifications
| Product Name | Cryogenic gas control valve extended stem globe valve with wheel handle |
| 1. Material | A105/F304/F316/F5/F9/F11/F22/F531/F91/F92/F304L/F316L |
| 2. Size | 1/2''~48'' ( DN15~DN1200) |
| 3. Thread standard | ISO9001 & CE, TS |
| 4. Port | Full Port |
| 5. Working Pressure | 150LB~1500LB |
| 6. Connection Ends | RF, FF. RTJ, Butt Welded. |
| 7. Working Temp. | -29~425ºC, or according to customer requirements for different industry. |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 15~20 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
Features
Size: 1/2"-12"(DN15-DN300)
W.P:10K/20K
W.T:-425ºC
Rising stem
Design:JIS B2071
Flange dimension:JIS 2220
Face to face:JIS B2002
Inspection &testing:JIS B2071
